Simulate the M4MA

Source: R/simulate.R
simulate.Rd

This function allows users to simulate data from their specified predped-class.

Usage

# S4 method for class 'predped'
simulate(
  object,
  max_agents = 20,
  iterations = 1800,
  add_agent_after = function(x) rnorm(x, 60, 15),
  standing_start = 0.1,
  initial_agents = NULL,
  initial_condition = NULL,
  initial_number_agents = NULL,
  goal_number = function(x) rnorm(x, 10, 2),
  goal_duration = function(x) rnorm(x, 10, 2),
  precompute_goal_paths = FALSE,
  sort_goals = TRUE,
  precomputed_goals = NULL,
  middle_edge = FALSE,
  space_between = 1.25,
  time_step = 0.5,
  precompute_edges = TRUE,
  many_nodes = precompute_edges,
  individual_differences = FALSE,
  group_size = matrix(1, nrow = 1, ncol = 2),
  fx = function(x) x,
  cpp = TRUE,
  ...
)

Arguments

object

Object of the predped-class.

max_agents

Numeric, vector, or function that defines the maximal number of agents at each iteration in the simulation. If a vector, the maximal number of agents will be different at each iteration, allowing users to specify peak and off-peak scenarios. It's exact value is handled by determine_values. Defaults to 20.

iterations

Numeric denoting the number of iterations to run the simulation for. Defaults to 1800, which corresponds to 15 minutes of simulation.

add_agent_after

Numeric, vector, or function that defines the maximal number of agents at each iteration in the simulation. It's exact value is handled by determine_values. Defaults to \(n) rnorm(n, 60, 15) or someone walking in every 30 seconds on average.

standing_start

Numeric denoting the factor of their preferred speed that agents move when they just came from standing still. Defaults to 0.1.

initial_agents

List of objects of the agent-class with which to start the simulation. Defaults to NULL, meaning the simulation starts with an empty room.

initial_condition

Object of the state-class containing the initial state at which to start the simulation. Defaults to NULL, meaning the simulation starts with an empty room. Ignored when initial_agents or initial_number_agents is provided.

initial_number_agents

Numeric denoting the number of agents that the simulation should start out with. Defaults to NULL, meaning the simulation should start with no agents in the room. Ignored if initial_agents is provided.

goal_number

Numeric, vector, or function that defines the number of goals the agents should accomplish. It's exact value is handled by determine_values. Defaults to \(n) rnorm(n, 10, 2).

goal_duration

Numeric, vector, or function that defines the duration of the goals of the agents. Defaults to \(n) rnorm(n, 10, 2).

precompute_goal_paths

Logical denoting whether to run the find_path for each of the generated goals beforehand. Assumes that the agent does all of the goals in the order of the goal stack. Defaults to FALSE.

sort_goals

Logical denoting whether to order the goal stack in a logical way. Currently implemented in the following way. First, we select the first goal as being the one that is closest by the starting position provided in the argument starting_position. Then, we define each of the next goals as being the one that is closest to the position of the previous goal. Defaults to TRUE.

precomputed_goals

List of goal stacks from which the agent can be assigned one. Defaults to NULL, triggering the creation of goal stacks in the simulation.

middle_edge

Logical denoting whether to sample the goals from the middle of the edge of the objects in the link[predped]{background-class} (TRUE) or to allow the goal locations to fall on all points on these edges (FALSE). Defaults to FALSE.

space_between

Numeric denoting the multiplier for the space to leave between the circumference of the object and the nodes created under the hood (see add_nodes). Is multiplied by the agent's radius to determine the actual space to leave between object and node. Defaults to 2.5.

time_step

Numeric denoting the number of seconds each discrete step in time should mimic. Defaults to 0.5, or half a second.

precompute_edges

Logical denoting whether to precompute the path points on which agents can move. Defaults to TRUE, triggering the creation of edges through the compute_edges function.

many_nodes

Logical denoting whether to use the minimal amount of path points necessary for the edges (FALSE) or to use many more TRUE. Defaults to TRUE if precompute_edges = TRUE, and otherwise defaults to FALSE. See create_edges for full disclosure on the effect of this logical.

individual_differences

Logical denoting whether to use the standard deviations in the parameter list to create some variation in the parameters. Defaults to FALSE.

group_size

Numeric matrix with two columns where the first column denotes the number of people in a social group and the second column the probability with which such a group is added to the simulation. Defaults to a 100% probability that individuals are added to the simulation (i.e., no social groups).

fx

Function that takes in and returns an object of the state-class. This will be executed at the beginning of each iteration and allows users some flexibility in their simulations. For example useful when simulating evacuations (giving everyone "goal exit") or trying to guide behavior in any other way. Defaults to "\(x) x", meaning the state remains unaltered.

cpp

Logical denoting whether to use the Rcpp (TRUE) or R (FALSE) versions of the lower-level functions. Defaults to TRUE.

...

Arguments passed on to the simulate.state function.

Value

List of objects of the state-class containing the result of the simulation.

Details

Heavily depends on simulate.state and update.

The arguments that can be used to influence the simulation behavior might be overwhelming, which is why we include a small categorization of the arguments in this sections. Roughly speaking, this function has multiple arguments that influence a same aspect of the simulation. These are the following (note that here all arguments are provided; some of these may only appear in the documentation of simulate.state).

Arguments that directly influence the general characteristics of the simulation and the model itself.

max_agent:

How many agents that can be in the room.

iterations:

How long the simulation should last.

add_agent_after:

How many iterations to leave between each agent entering the room.

time_step:

How much time passes after each iteration.

velocities:

To which extent an agent can change their speed from one iteration to the next.

orientations:

To which extent an agent can change their direction from one iteration to the next.

stay_stopped:

Whether agents predict currently immobile pedestrians to remain immobile.

Arguments that influence general characteristics of the agents.

individual_differences:

Whether agents should have continuous individual differences.

standing_start:

How fast agents are after standing still.

Arguments controlling whether an initial condition should be used.

initial_agents:

An initial list of agents.

initial_number_agents:

An initial number of agents with which you want to start the simulation.

initial_condition:

An initial state.

Preferably, only one is used at a time.

Arguments controlling the goals, which can be easily traced back to the goal_stack function.

goal_number:

The number of goals the agents should have.

goal_duration:

How long each goal should take.

precompute_goal_paths:

Whether the paths to the goals should be precomputed.

sort_goals:

Whether to sort the goals based on distance. Corresponds to the sort argument in goal_stack.

precomputed_goals:

List of goal stacks that already exist and which should be assigned to the agents.

Arguments controlling how path points and edges are handled.

precomputed_edges:

List containing nodes and edges.

many_nodes:

Whether to have many or few path points.

space_between:

Space to leave between objects and nodes.

close_enough:

How close a pedestrian should be before they can (a) interact with a goal or (b) start planning to go to another path point.

Arguments that handle feedback during the simulation.

plot_live:

Whether to make these plots.

plot_time:

How much time to leave between the plotting of each state.

report:

Whether to report whenever agents are reorienting.

See also

simulate.state, update

Examples

# Create a setting in which to simulate. Note that this setting also serves
# as an example of one-directional flow, which can be seen if you let the
# simulation run a bit longer.
my_background <- background(shape = rectangle(center = c(0, 0),
                                              size = c(2, 2)),
                            objects = list(rectangle(center = c(0, 0),
                                                     size = c(1, 1))),
                            limited_access = list(segment(from = c(-1, 0.5),
                                                          to = c(-0.5, 0.5)),
                                                  segment(from = c(0.5, 1),
                                                          to = c(0.5, 0.5)),
                                                  segment(from = c(1, -0.5),
                                                          to = c(0.5, -0.5)),
                                                  segment(from = c(-0.5, -1),
                                                          to = c(-0.5, -0.5))))

# Create a model from which to simulate
my_model <- predped(setting = my_background,
                    archetypes = c("BaselineEuropean"))

# Do the simulation for maximally 2 agents
trace <- simulate(my_model,
                  max_agents = 2,
                  iterations = 10,
                  add_agent_after = 5)
#>
#> Precomputing edges
Your model: model qtgcu is being simulated

# Check some interesting statistics, such as the length of the trace and the
# number of agents in the room.
length(trace)
#> [1] 11
sapply(trace, \(x) length(x@agents))
#>  [1] 0 1 1 1 1 1 1 1 1 1 1

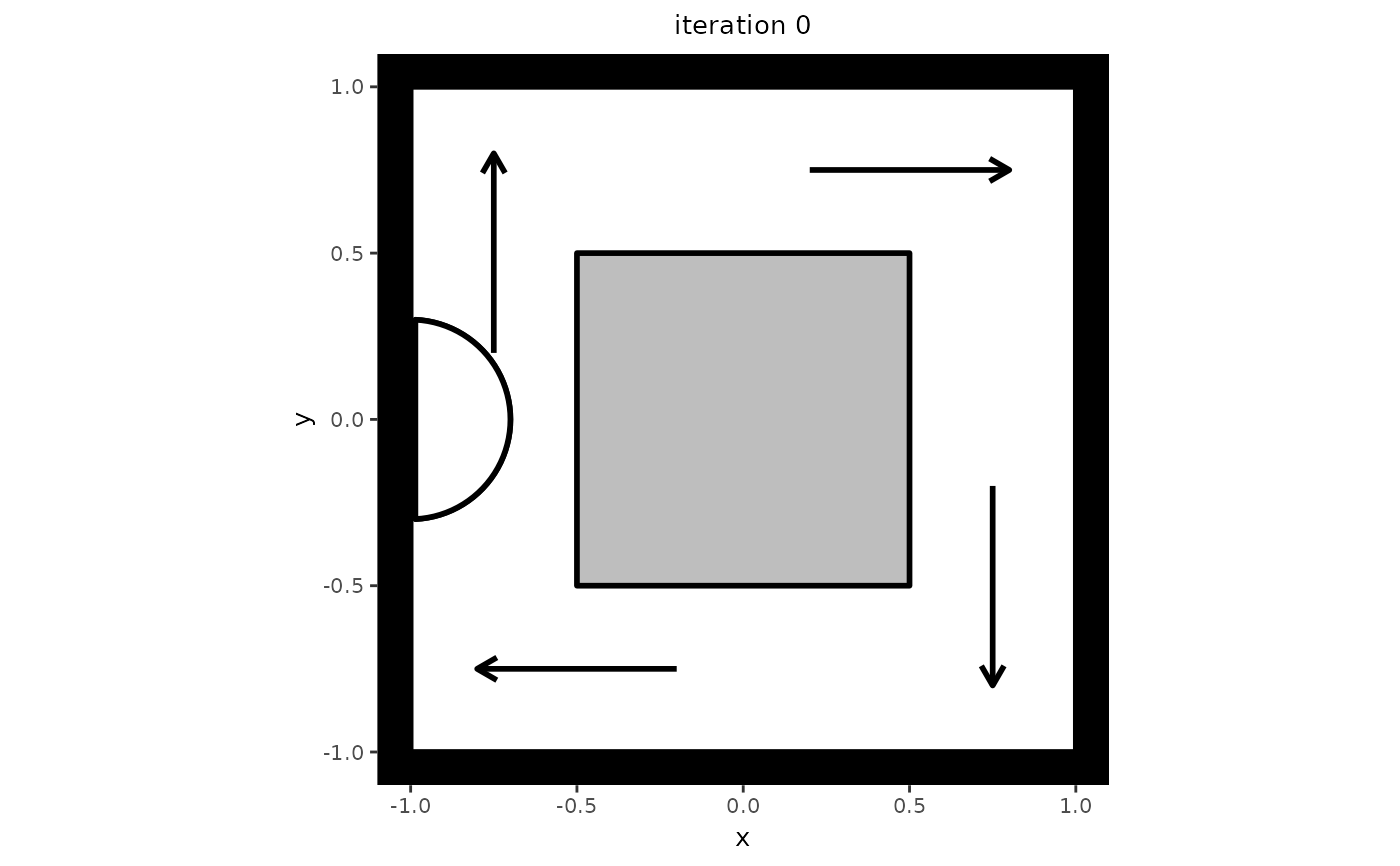

# If you wish to plot the trace, you can simply use the plot function.
plt <- plot(trace)
#> Loading required namespace: ggplot2
#>
#>
Making plot for state 0
Making plot for state 1
Making plot for state 2
Making plot for state 3
Making plot for state 4
Making plot for state 5
Making plot for state 6
Making plot for state 7
Making plot for state 8
Making plot for state 9
Making plot for state 10
plt[[1]]
